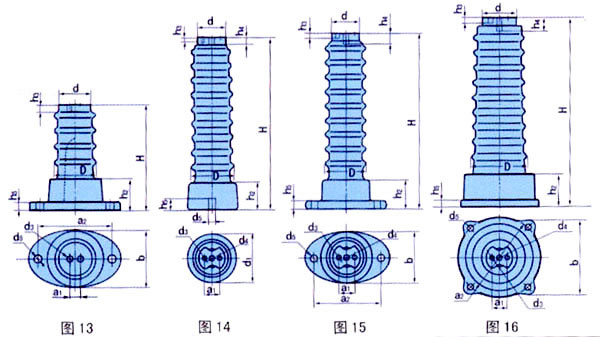

| 型号 | 图号 |
主要尺寸mm
|
重量 kg |
||||||||||||
| H | D | h2 | h3 | h4 | h5 | d | d1或b | d3 | d4 | d5 | a1 | a2 | |||
| ZL-10/4G | 13 | 210 | 90 | 60 | 18 |
-
|
15 | 70 | 112 | 2-M8 |
-
|
2-Φ14 | 18 | 145 | 5.4 |
| ZL-35/4Y | 14 | 380 | 90 | 60 | 8 | 20 | 25 | 62 | 114 | 2-M8 | M10 | M-16 | 36 |
-
|
6.2 |
| ZL-35/4G | 15 | 445 | 100 | 64 | 8 | 20 | 14 | 62 | 120 | 2-M8 | M10 | 2-Φ16 | 36 | 150 | 9.3 |
| ZL-35/8G | 16 | 445 | 125 | 70 | 12 | 25 | 14 | 68 |
-
|
2-M10 | M16 | 4-Φ14 | 46 | 180 | 11.4 |
