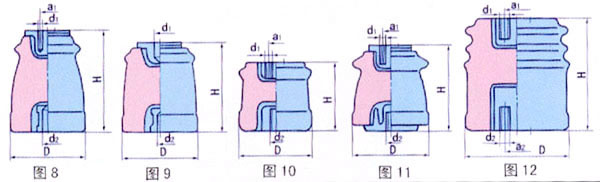

| 型号 | 图号 |
主要尺寸mm
|
重量 kg |
|||||
| H | D | d1 | d2 | a1 | a2 | |||
| ZN-6/4 | 8 | 100 | 85 | 2-M8 | M12 | 18 |
-
|
1.2 |
| ZN-10/4 | 8 | 120 | 85 | 2-M8 | M12 | 18 |
-
|
1.6 |
| ZN-10/8N | 9 | 120 | 105 | M16 | M16 |
-
|
-
|
2.6 |
| ZN-10/8 | 10 | 120 | 105 | 2-M10 | M16 | 24 |
-
|
2.6 |
| ZN-10/16 | 11 | 170 | 160 | 2-M12 | M20 | 36 |
-
|
7.7 |
| ZN-20/30 | 12 | 230 | 200 | 2-M16 | 2-M20 | 46 | 46 | 11.0 |
