Insulators for Trolley Bus lines
|
Applicable standard
一、Use, structure, Type
The cheat knob insulators for low voltage is used'm the work freguency ac or Dg voleage up to 1000v with supporting and insul a thang the conductors on low voltage I's tribution Lines Trolleybus vme is used introlley bus limeor crane slippory anglo lime with inswlathy and supporthy Conductors
Disgncotion：G-Cleat knob K-pittlongs of wooden screw,the number after shows is porcelalw high(mm) W-trolleybus I'me use imsulator X-Hang type H-poriclu'm ring type and dash after is order number

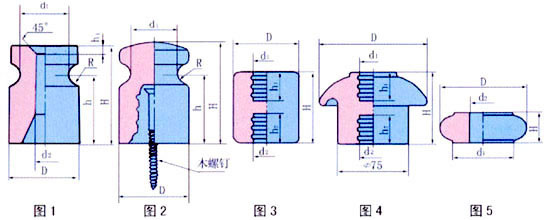

Major structural size
|
|
Type |
fiyg |
Marm dnmenshows |
Power foerVoleage Less tham |
Porcelasm Mechanical fasling iowl Less tham |
Weight
kg |
| H |
h |
h1 |
h2 |
D |
d1 |
d2 |
R |
wet fhdwer |
wet fhdwer |
teus'vle strongth |
Comthlevor
strengin |
| G-25 |
１ |
25 |
15 |
3 |
- |
22 |
16 |
7 |
3 |
- |
- |
- |
0.5 |
0.05 |
| G-38 |
１ |
38 |
25 |
3 |
- |
30 |
20 |
8 |
5 |
- |
- |
- |
1.0 |
0.1 |
| G-50 |
１ |
50 |
35 |
4 |
- |
36 |
24 |
9 |
6 |
- |
- |
- |
2.0 |
0.15 |
| G-60 |
１ |
60 |
40 |
5 |
- |
45 |
30 |
10 |
7.5 |
- |
- |
- |
2.5 |
0.2 |
| GK-50 |
２ |
50 |
35 |
- |
- |
35 |
24 |
- |
6 |
- |
- |
- |
2.0 |
0.2 |
| WX-01 |
３ |
75 |
- |
30 |
30 |
75 |
27 |
27 |
- |
30 |
10 |
5.0 |
2.0 |
0.9 |
| WX-02 |
４ |
75 |
- |
30 |
30 |
115 |
27 |
27 |
- |
35 |
13 |
5.0 |
2.0 |
1.0 |
| WH-01 |
５ |
25 |
- |
- |
- |
65 |
40 |
23 |
- |
- |
- |
- |
- |
0.2 |
| WH-01 |
５ |
32 |
- |
- |
- |
90 |
63 |
28 |
- |
- |
- |
- |
- |
0.4 | |
|
