ShotHe Eusulatons for HV lines
|
Applicable standard
一、Use, structure, Type
High Voltoge shackle type Insulators can be used in overhead line distrihuthon termimal,the Insulators are used for supporting and insulating on corner rod use ,at the same time also have been used extensively with suspension type uswlator coordination,have as hardware fittings element.
The shockel type porcelain Insulator have two (old type)or4kinds(New Type)greater umbrella skirt,shape as butterfly
Disgncotion
E-Shack Ineulotor for High voltayc pmes The Number after "viated wltaye"
E-After dash,figure is shape size ordinal,it is biggest for size that1
二、Main dimensions and partioulars
|
|
Cat No |
Type |
fiy |
Nominal voltaye |

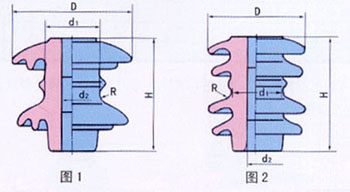

Main Dimensions mm |
power Frogneny voteage |
MiE fulling lood |
wdight |
| H |
D |
d1 |
d2 |
R |
Dryfnohale |
wet fushover |
not lass punctore |
| 13102 |
E-10 |
1 |
10 |
175 |
180 |
70 |
26 |
12 |
60 |
32 |
78 |
15 |
3.5 |
| 13101 |
E-6 |
1 |
6 |
145 |
150 |
68 |
26 |
12 |
50 |
26 |
65 |
15 |
1.8 |
| 13104 |
E-1 |
2 |
- |
180 |
150 |
74 |
26 |
12 |
45 |
27 |
78 |
20 |
4.0 |
| 13103 |
E-2 |
2 |
- |
150 |
130 |
72 |
26 |
12 |
38 |
23 |
65 |
20 |
2.2 | |
|
